ELECTROMAGNETIC SENSOR
Electromagnetic Sensor
Feature
● High stability and sensitivity
● Highly customizable solution
● Best isotropic/size performance
● RoHS and REACH compliant
● 5DOF sensor provides position and orientation data in five degrees of freedom : three translation values on the x, y and z-axes and any two of the three rotation values roll, pitch and yaw. It is designed for integrating into applications that require small sensors. The sensor is completely potted into a thin-walled, yellow-transparent PI-tube.
● 6DOF sensor provides position and orientation data in six degrees of freedom: three translation values on the x, y and z-axes and all of the three rotation values roll, pitch and yaw. It is designed for integrating into applications that require small sensors.

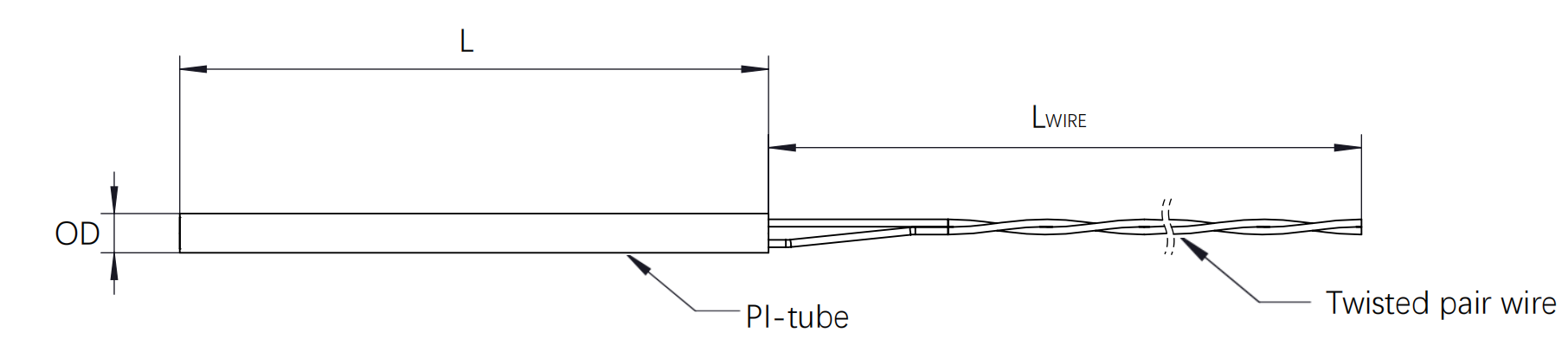

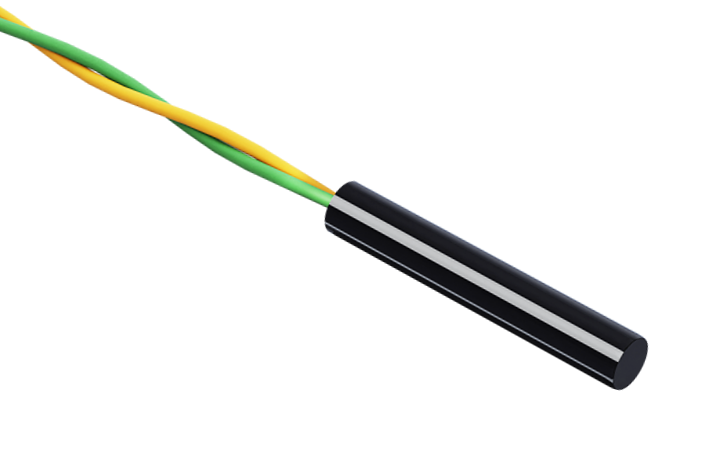

Reference Drawing
Model Specification
|
Model |
OD (mm) |
L(mm) |
Inductance(mH) |
Resistance(Ω) |
LWIRE(m) |
ODWIRE(mm) |
|
DES5D35-4060 |
0.42±0.03 |
6.2±0.3 |
3.0±10% |
105±20% |
2.0±0.05 |
0.16±0.02 |
|
DES5D14-4545 |
0.42±0.03 |
4.5±0.3 |
1.4±15% |
80±10 |
2.5±0.05 |
0.16±0.02 |
|
DES5D55-0811 |
0.93±0.03 |
12.5 Max |
5.5±15% |
76.5±20% |
2.5±0.1 |
0.36±0.03 |
|
DES5D33-3310 |
0.33 Max |
10 Max |
3.3±15% |
105±10% |
2.0±0.05 |
0.16±0.02 |
|
DES5D04-3325 |
0.33 Max |
2.5±0.3 |
0.4±15% |
95±10 |
2.0±0.05 |
0.16±0.02 |
|
DES5D35-4060S1 |
0.42±0.03 |
6.2±0.3 |
3.0±10% |
105±20% |
1200±10 |
0.36 Max |
|
DES5D35-4060S2 |
0.42±0.03 |
6.2±0.3 |
3.0±10% |
105±20% |
1200±10 |
0.36 Max |
|
DES5D14-4545S1 |
0.42±0.03 |
4.5±0.3 |
1.4±15% |
75±10 |
1200±10 |
0.36 Max |
|
DES5D14-4545S2 |
0.42±0.03 |
4.5±0.3 |
1.4±15% |
75±10 |
1200±10 |
0.36 Max |
*Measured at 1 kHz / 0.25 Ve at RT；DES5D55-0811(Measured at 1 kHz / 0.20 Ve at RT)
*Contact us for customization
Operating and Storage conditions
The sensor assembly will operate in an ambient temperature range of 10℃ to 30℃, and 30-75%RH. The sensor should be stored at temperatures between 0℃ to 50℃，and dry clean air atmospheric conditions.
Reference Drawing
Model Specification
|
Model |
OD (mm) |
ID(mm) |
L(mm) |
Inductance(mH) |
Resistance(Ω) |
LWIRE(m) |
ODWIRE(mm) |
|
DES5D-H01 |
2.40±0.03 |
1.65±0.03 |
3.5 Max |
1.4±0.2 |
730±20 |
2500±50 |
0.16±0.02 |
|
DES5D-H02 |
1.60±0.03 |
1.14±0.03 |
3.5 Max |
0.5±0.1 |
820±30 |
2500±50 |
0.16±0.02 |
|
DES5D-H03 |
1.60±0.03 |
1.14±0.03 |
5.7±0.3 |
3.3±0.3 |
745±25 |
2000±50 |
0.16±0.02 |
|
DES5D-H04 |
0.70±0.02 |
0.27±0.02 |
2.0 Max |
0.6±0.15 |
285±15% |
2000±50 |
0.16±0.02 |
|
DES5D-H05 |
3.65 Max |
3.05 Min |
4.0 Max |
1.0~2.0 |
930±30 |
2000±50 |
0.16±0.02 |
*Measured at 1 kHz / 0.25 Ve at RT
*Contact us for customization
Operating and Storage conditions
The sensor assembly will operate in an ambient temperature range of 10℃ to 30℃, and 30-75%RH. The sensor should be stored at temperatures between 0℃ to 50℃，and dry clean air atmospheric conditions.
Reference Drawing
Model Specification
|
Model |
OD (mm) |
L(mm) |
Inductance(mH) |
Resistance(Ω) |
LWIRE(mm) |
|
DES6D35-9565 |
0.93±0.03 |
6.5±0.3 |
3.5±10% |
105±20% |
2000±50 |
|
DES6D39-6363 |
0.63±0.02 |
6.3±0.2 |
3.9±10% |
155±10% |
2000±50 |
*Measured at 1 kHz / 0.25 Ve at RT
*Contact us for customization
Sensor Wiring
|
Axis Direction |
Sensor Wiring |
|
Positive z-axis pointing away from the sensor lead wires |
Connect the natural wire to tool connector “1 sensor +” |
|
|
Connect the green wire to tool connector “1 sensor –“ |
|
|
Connect the red wire to tool connector “2 sensor +” |
|
|
Connect the blue wire to tool connector “2 sensor –“ |
|
Positive z-axis pointing towards the sensor lead wires |
Connect the green wire to tool connector “1 sensor +” |
|
|
Connect the natural wire to tool connector “1 sensor –“ |
|
|
Connect the blue wire to tool connector “2 sensor +” |
|
|
Connect the red wire to tool connector “2 sensor –“ |
Operating and Storage conditions
The sensor assembly will operate in an ambient temperature range of 10℃ to 30℃, and 30-75%RH. The sensor should be stored at temperatures between 0℃ to 50℃，and dry clean air atmospheric conditions.

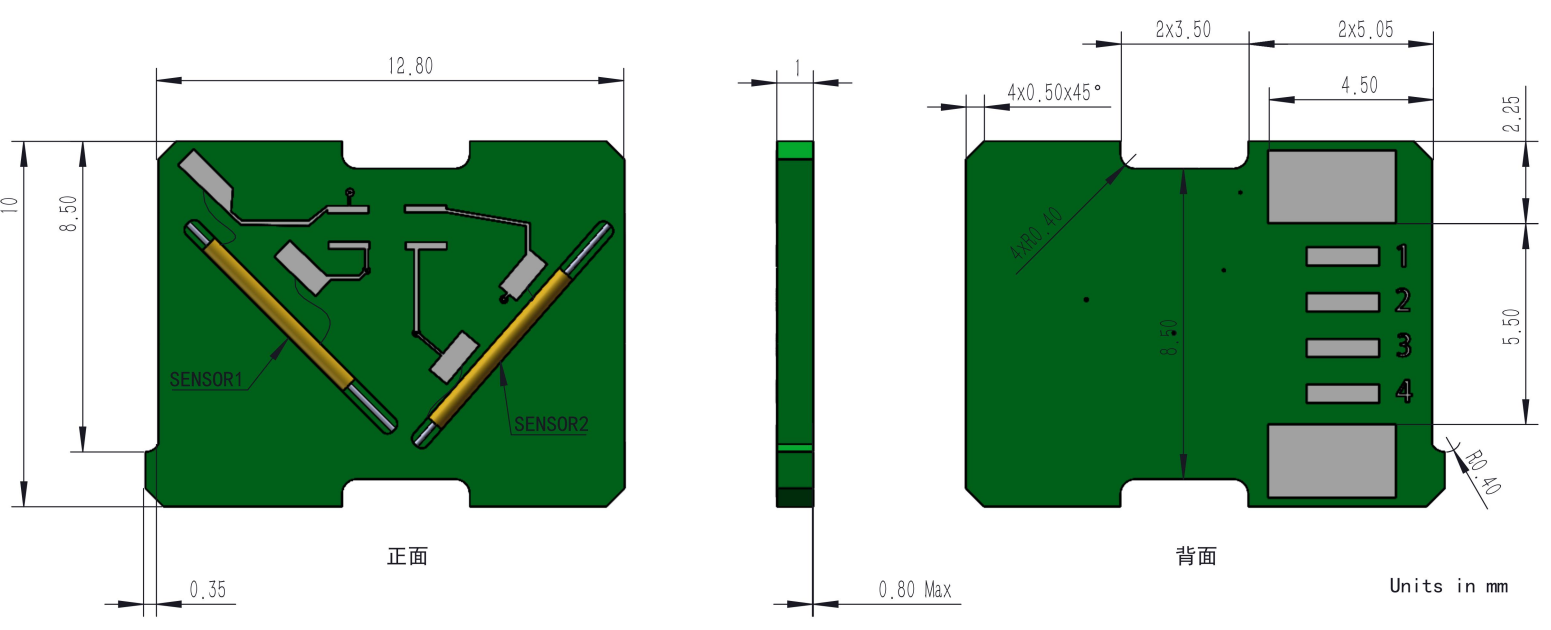

Reference Drawing
Model Specification
|
Electrical Properties of the Sensor（Measured at 1 kHz / 0.25 Ve at RT） |
|
|
Inductance(mH) |
Resistance(Ω) |
|
5.3±15% |
75.0±10% |
|
Main dimensions of PCB |
|
|
Length |
12.8mm |
|
Width |
10mm |
|
Height |
1mm |
|
Width of tongue |
0.35mm |
|
Width of groove |
3.5mm |
|
Sensor Wiring |
|
|
Pad1 |
Sensor1+ |
|
Pad2 |
Sensor1- |
|
Pad3 |
Sensor2+ |
|
Pad4 |
Sensor2- |
Operating and Storage conditions
The sensor assembly will operate in an ambient temperature range of 10℃ to 30℃, and 30-75%RH. The sensor should be stored at temperatures between 0℃ to 50℃，and dry clean air atmospheric conditions.
Reference Drawing
Model Specification
|
Model |
DOF |
OD (mm) |
L(mm) |
Inductance(mH) |
Resistance(Ω) |
|
DES5D35-4060P |
5DOF |
0.80±0.05 |
2000±50 |
3.0±10% |
105±20% |
|
DES6D35-9565P |
6DOF |
1.30±0.05 |
2000±50 |
3.5±10% |
105±20% |
*Measured at 1 kHz / 0.25 Ve at RT
Operating and Storage conditions
The sensor assembly will operate in an ambient temperature range of 10℃ to 30℃, and 30-75%RH. The sensor should be stored at temperatures between 0℃ to 50℃，and dry clean air atmospheric conditions.
