Temperature Sensor
Temperature Sensor
| Features： | Applications： |
| ◆ Direct welding or soldering ◆ Moisture proof seal ◆ Double filament structure ◆ Flexible package structure tip ◆ Comply with RoHS and REACH standards |
◆ Thermotherapy Catheter ◆ Disposable endoscop ◆ Cryotherapy Catheter ◆ Ultrasound Ablation Catheter ◆ Tumor Ablation Needle ◆ Pain Management Electrode |
Description
The micro thermocouple is a flexible, high-precision sensor designed for fast and accurate temperature measurement. Made from metal alloy, it features wire gauges of 36–46 AWG, with the thermocouple tip diameter as small as 0.20mm. If a smaller outer diameter is required, customized solutions are also available.
Thermocouple lengths can be tailored for integration into medical catheters, ensuring optimal performance in complex applications.
Performance Specs
|
Model Number：DTS38K – 22（Type K，38AWG） |
||
|
Polarity |
Positive：Chromel（Natural），Negative：Alumel（Red） |
|
|
OD |
0.42mm max |
|
|
LEN |
5.0mm max |
|
|
L |
2000±50mm |
|
|
Insulated Wire Diameter |
0.140mm max * 0.280mm max |
|
|
Accurate |
±1.0℃ |
|
|
Temperature Range |
0~105℃ |
|
|
Model Number：DTS40T – 21（Type T，40AWG） |
||
|
Polarity |
Positive：Copper（Green），Negative：Constantan（Red） |
|
|
OD |
0.31mm max |
|
|
LEN |
5.0mm max |
|
|
L |
2000±50mm |
|
|
Insulated Wire Diameter |
0.105mm max * 0.210mm max |
|
|
Accurate |
±1.0℃ |
|
|
Temperature Range |
0~105℃ |
|
|
Model Number：DTS46T – 21（Type T，46AWG） |
||
|
Polarity |
Positive：Copper（Green），Negative：Constantan（Red） |
|
|
OD |
0.20mm max |
|
|
LEN |
5.0mm max |
|
|
L |
2000±50mm |
|
|
Insulated Wire Diameter |
0.065mm max * 0.130mm max |
|
|
Accurate |
±1.0℃ |
|
|
Temperature Range |
0~105℃ |
|

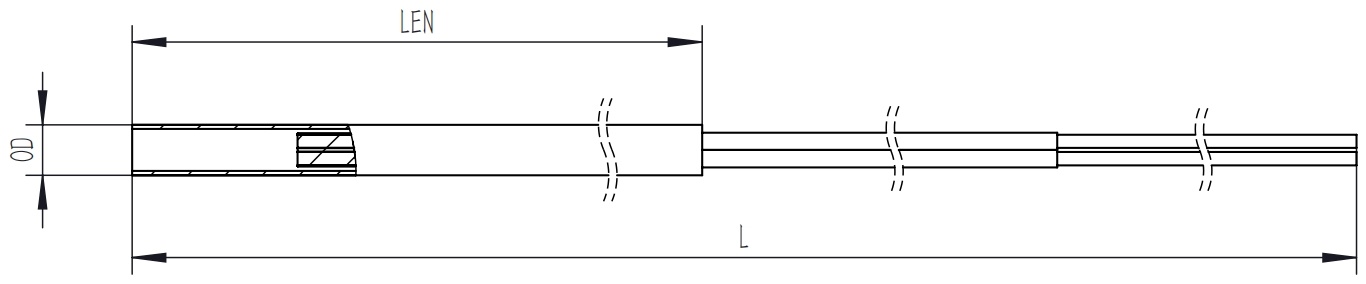

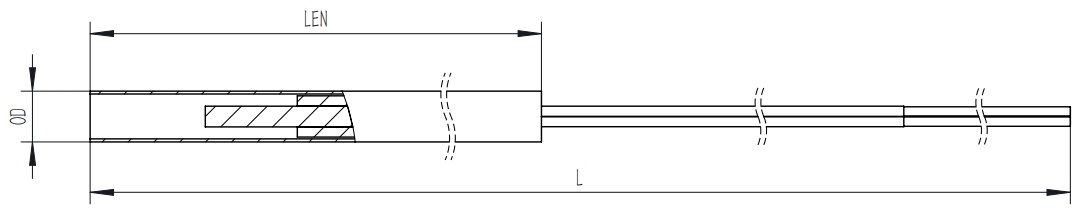

Product Diagram
Accept product customization, please contact our sales staff for details.
Packaging and Storage
 |

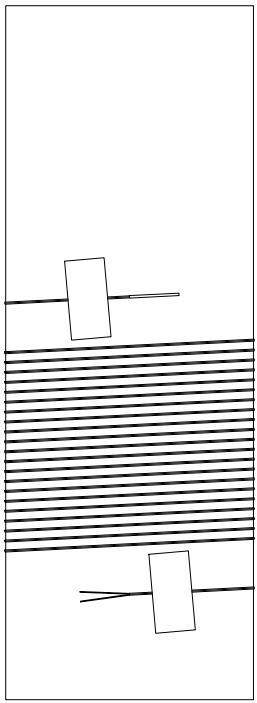

● The sensor is wound on the spool; The spool is transported in thermoformed plastic pallets. ● Thermocouples should be stored under dry and clean atmospheric conditions of 0~50℃. |
Resistance vs Temperature Table
|
T_℃ |
V_mV（Type K） |
V_mV（Type T） |
|
0 |
0.000 |
0.000 |
|
10 |
0.397 |
0.391 |
|
20 |
0.798 |
0.790 |
|
30 |
1.203 |
1.196 |
|
40 |
1.612 |
1.612 |
|
50 |
2.023 |
2.036 |
|
60 |
2.436 |
2.468 |
|
70 |
2.851 |
2.909 |
|
80 |
3.267 |
3.358 |
|
90 |
3.682 |
3.814 |
|
100 |
4.096 |
4.279 |

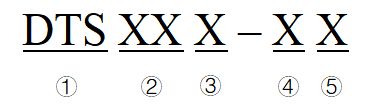

Ordering Information
①：Diagsensor Temperature Sensor
②：Wire Gage：36~46AWG
③：Thermocouple Type：K or T
④：Encapsulation Type：2= Polyimide Tube、3=Hypo Tube
⑤：Insulation Color：0= Not Required、1=Red/Green、2=Red/Natural

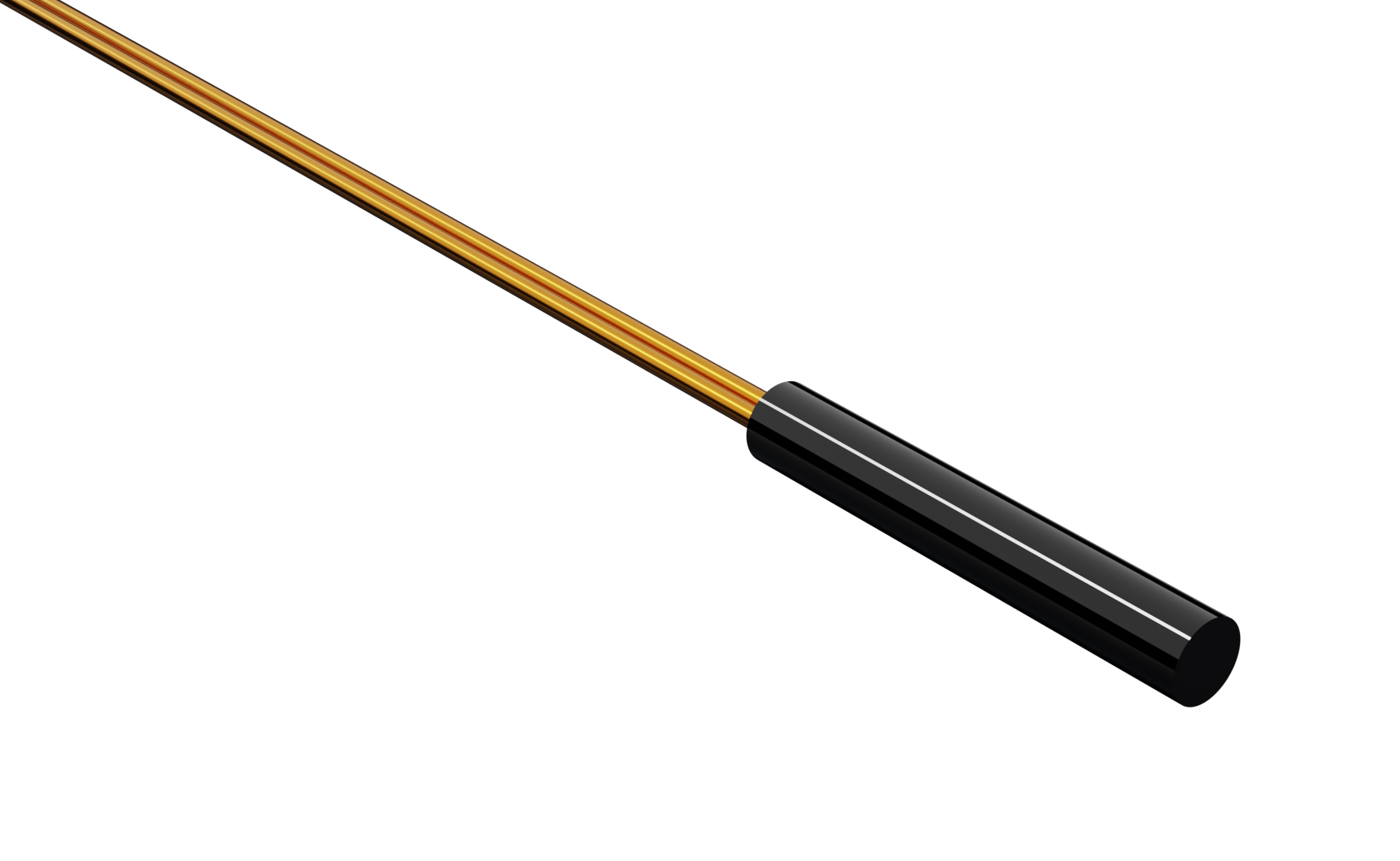

Description
NTC thermistors offer high accuracy, making them ideal for medical devices that measure body temperature. With advanced manufacturing expertise, Diagsensor produces ultra-miniature NTC thermistors as small as OD 0.3mm, designed for easy integration into complex, space-constrained medical devices.
Our precision-engineered solutions provide reliable real-time temperature data, enhancing procedural safety and performance in critical medical applications.
Performance Specs
|
Description |
Beta Value 25/50 |
R(kΩ) @25℃ |
Tol. @37℃ |
OD |
LEN |
Lead Type |
|
DTS223C3500D03/01 |
3500 |
22 |
±15% |
0.32max
|
2.28max
|
#44AWG Ni |
|
DTS223C3500D03/02 |
3500 |
22 |
±0.5% |
|||
|
DTS223C3500D03/03 |
3500 |
22 |
±15% |
#44AWG Cu |
||
|
DTS223C3500D03/04 |
3500 |
22 |
±0.5% |
|||
|
DTS103C3950D04-01 |
3950 |
10 |
±2.5% |
0.45±0.05 |
5.0±0.5 |
#40 AWG Cu |
Product Diagram
Accept product customization, please contact our sales staff for details.
Packaging and Storage
|
● The sensor is wound on the spool; The spool is transported in thermoformed plastic pallets. ● Thermocouples should be stored under dry and clean atmospheric conditions of 0~50℃. |
Resistance vs Temperature Table
|
T_℃ |
R_10kΩ 3950 |
R_22kΩ 3500 |
|
25 |
10.000 |
22.0032 |
|
26 |
9.571 |
21.1650 |
|
27 |
9.163 |
20.3631 |
|
28 |
8.775 |
19.5960 |
|
29 |
8.405 |
18.8619 |
|
30 |
8.053 |
18.1592 |
|
31 |
7.717 |
17.4865 |
|
32 |
7.397 |
16.8422 |
|
33 |
7.092 |
16.2252 |
|
34 |
6.802 |
15.6340 |
|
35 |
6.524 |
15.0675 |
|
36 |
6.260 |
14.5245 |
|
37 |
6.007 |
14.0040 |
|
38 |
5.766 |
13.5049 |
|
39 |
5.536 |
13.0262 |
|
40 |
5.317 |
12.5670 |
|
41 |
5.107 |
12.1263 |
|
42 |
4.906 |
11.7035 |
|
43 |
4.715 |
11.2976 |
|
44 |
4.531 |
10.9079 |
|
45 |
4.356 |
10.5337 |
|
46 |
4.189 |
10.1742 |
|
47 |
4.029 |
9.8289 |
|
48 |
3.875 |
9.4971 |
|
49 |
3.729 |
9.1782 |
|
50 |
3.588 |
8.8717 |
Ordering Information
①：Diagsensor Temperature Sensor
②：Wire Gage：36~46AWG
③：Thermocouple Type：K or T
④：Encapsulation Type：2= Polyimide Tube、3=Hypo Tube
⑤：Insulation Color：0= Not Required、1=Red/Green、2=Red/Natural
